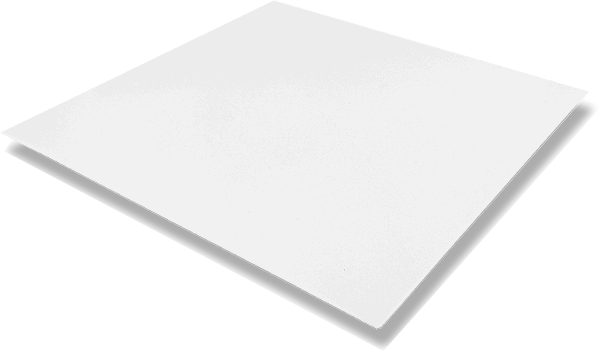

​​​Infrared Heater Panel (mountable)​
Back of Panel - Bracket.jpg
Panel Mounting screws.jpg
Infrared Heater Panel (mountable)
Infrared Heater Panel (mountable)

​​​Infrared Heater Panel (mountable)​

https://www.infraredheaterpanels.co.uk/web/image/product.template/4/image_1920?unique=981a8b0

High performance far infrared heaters which look superb when mounted on either ceilings or walls.

Our standard panels come in a range of sizes meaning that we can cater for every situation. They are high performance far infrared heaters which look superb when mounted on either ceilings or walls. Their unique, angled swept-back sides give the illusion of a floating frame of zero thickness. The product is engineered to a design that allows the panels to be virtually flush with the wall or ceiling, further enhancing its modern, stylish, unobtrusive look. We are able to advise on the best combinations to fit your project.

Available in white, black and shades of grey.



Data Sheet:


Part No.PowerSize (L x W x H)WeightHeating Area
IHP160160W295 x 595 x 25mm1.3kg3m2
IHP320S320W595 x 595 x 25mm2.6kg6m2
IHP320320W1195 x 295 x 25mm2.6kg6m2
IHP480480W895 x 595 x 25mm3.8kg9m2
IHP640640W1195 x 595 x 25mm5.1kg12m2
IHP900900W1250 x 595 x 25mm7.5kg17m2

Heating area is dependent upon a variety of factors eg insulation, usage, building construction etc. Please contact one of heating specialists for guidance.

Property Value
Element Resistor - Heavy Duty Stainless Steel in a Ceramic (mica) Substrate
Usage Low intensity heating panel for indoor heating. Can be mounted flush with a wall or ceiling without fear of over-heating. Ceiling model fits directly into standard grid suspended ceiling. Not suitable for outside heating or in large open spaces.
Temperature 90°C (average) 120°C for 900W panel.
Fuse Rating (Recd.) 3 Amp for 160 to 480W, 5 Amp for 640 & 900W models
IP Rating IP54
Protection Bimetallic temperature trip
Certifications & Compliance LVD EN60335-1:2002 + A11:2004 + A1:2004 + A12:2006 + A2:2006 + A13:2008 + A14:2010 EN60335-2-30:2003 EN61000-6-3:2007 + A1:2011 EN61000-3-2:2006 + A1:2009 + A2:2009 EN61000-3-3:2008 EN61000-6-1:2007 RoHS Directive 2011/65/EU EC Directive 2012/19/EU on WEEE Commission Regulation (EU) 2015/1188 Lot 20 and is exempt under Article 1 Section (g) by definition under Article 2 Section (16)
Warranty 10 years
Manufactured By Infrared Heating Products Ltd in the UK
